| Technical data of 1.6cbm | |||

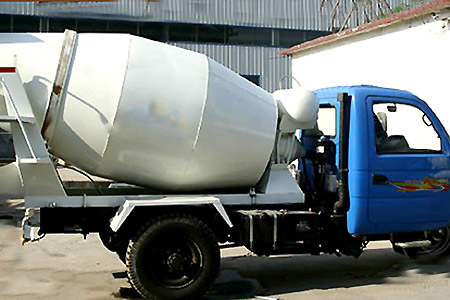

| Name | 1.6cbm mixing truck | Model of engine | LD km160B |
| Chassis model | Wuzheng 1600-1 three wheels series | Engine type | Forced circulation cooled |
| Total weight (kg) | 2560 | Engine displacement (L) | 1.38 |
| Dimension L*W*H(mm) | 5300*1650*2600 | Engine power (kW) | 19.8 |
| Wheel base(mm) | 3000 | Max. standard engine speed(r/min) | 2200 |
| Front overhang(mm) | 400 | Barrel geometric volume (m³) | 2 |
| Rear overhang(mm) | 2200 | Max. mixing volume (m³) | 1.6 |
| Max. gradeability(degree) | 20 | Feed rate (m³) | ≥0.5 |
| Max. speed(km/h) | ≤50 | Discharge rate (m³) | ≥0.8 |
| Turning diameter (m) | ≤15 | Max. rotate speed (r/min) | 6-10 |
| clutch | double dry type clutch | Barrel slope (°) | 13.14 |
| Transmission type | Belt type | Diameter of mixing barrel (mm) | Φ1400 |
| Drive mode | rear wheel drive | Gear box | Ky67-3-c |
| Steering mode | Steering wheel | Hydraulic pump | 50 gear pump |
| Service brake | Single pipeline rear brake | Hydraulic motor | gerotor motor |
| Parking brake | Mechanical rear brake | Water tank volume (L) | 62 |
| Tyre | 825-16 | Water supply way | Air pressure |
